Welding jig for pasta cooker shelf

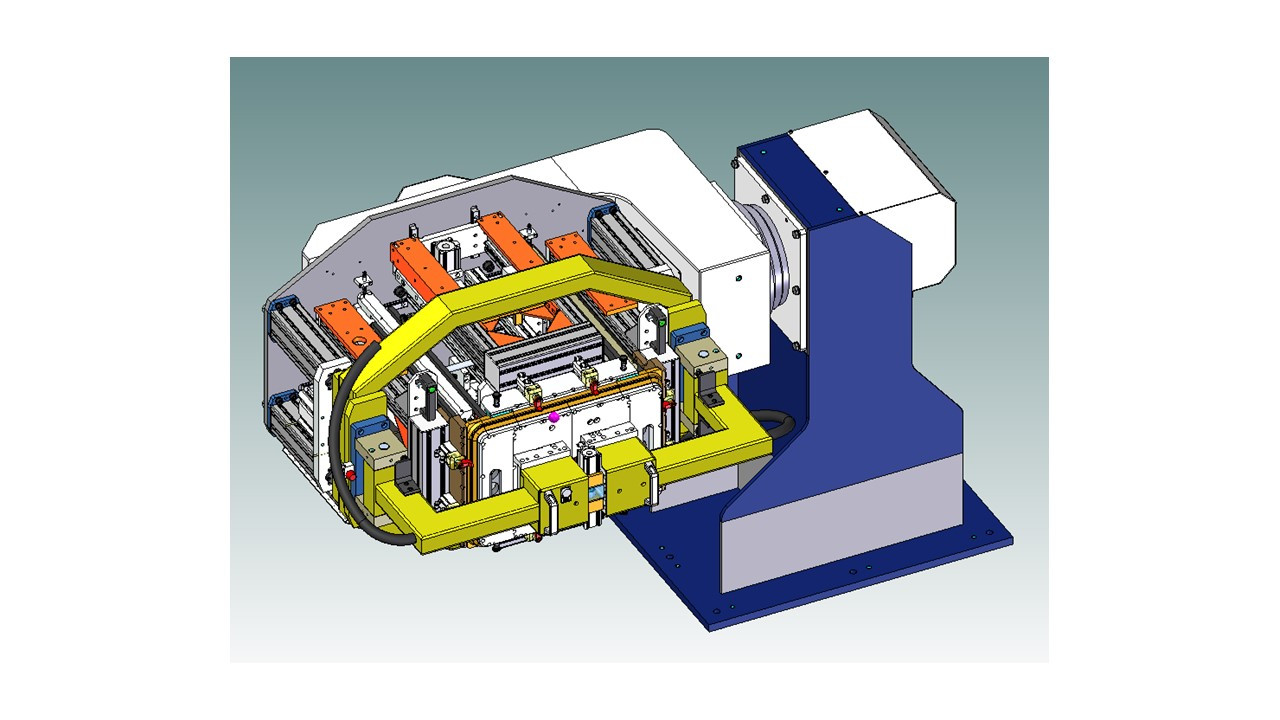

The machine is designed to precisely clamp the basin and countertop elements, ensuring ideal operating conditions for robotic welding.
The equipment allows processing of different models of pasta-cooker assemblies, which mainly differ by the type of countertop (single or double basin), while keeping the basin model unchanged.
single-station robotic welding machine
fully pneumatic operation
mechanical device with pneumatic actuation for clamping the basin
mechanical device with pneumatic actuation for clamping the countertop to the basin
centering jig for aligning the countertop to the basin with manual actuation (supplied)
cooling channels positioned on the countertop pressing plate and on the basin fixturing devices
cooling circuit integrated in the branches of the pressing plate
precision centering device for aligning the countertop to the basin

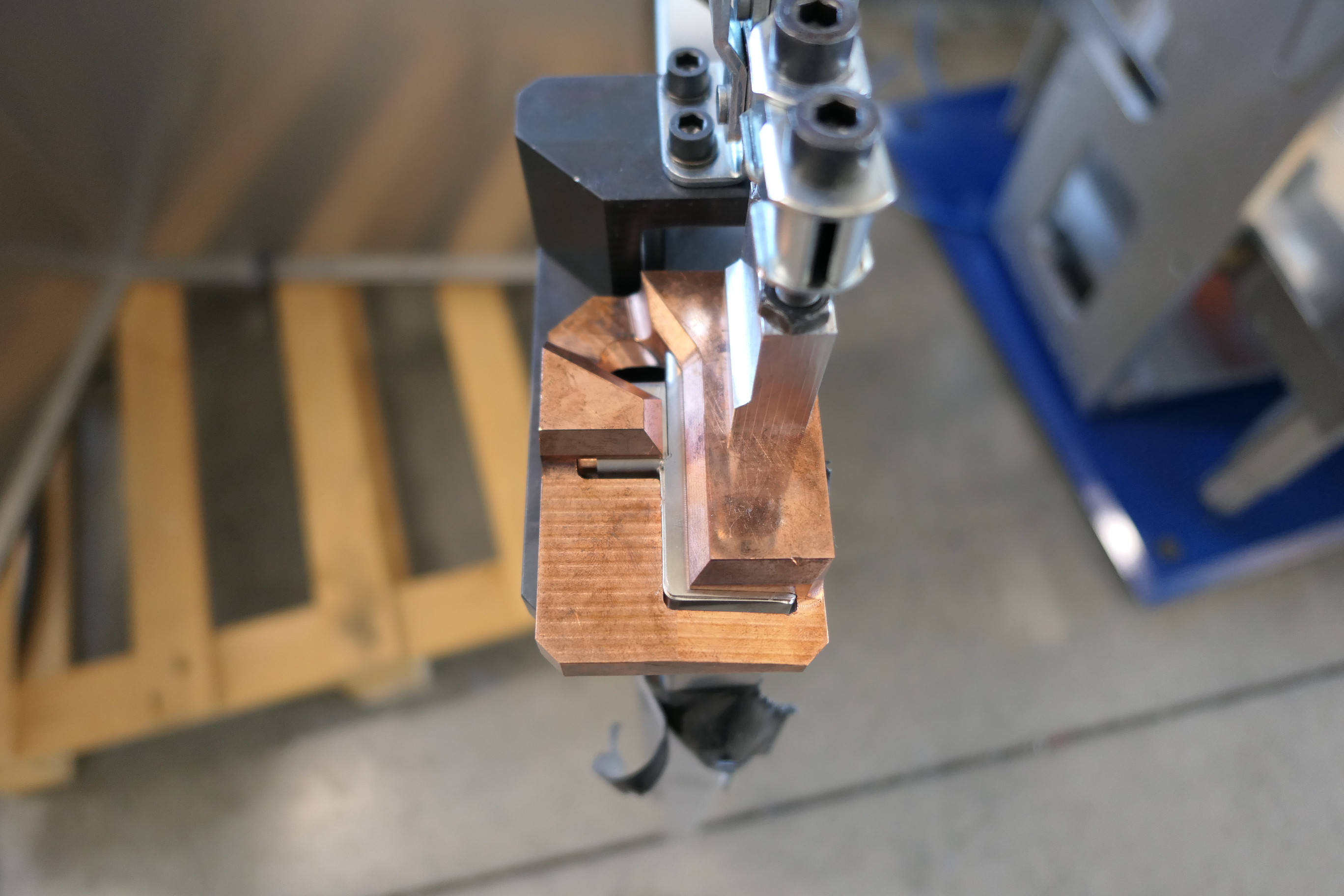

all copper contact surfaces are designed and machined starting from a 3D scan of the basin, to ensure maximum adherence and protection during welding
