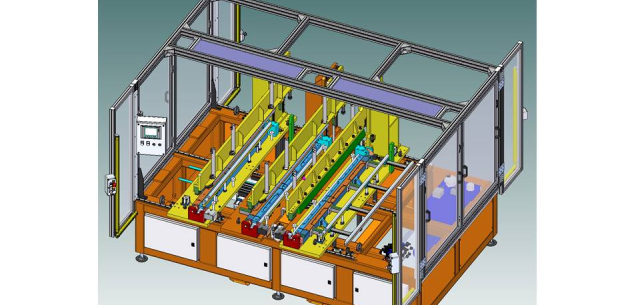

Bending machine for professional ovens
The machine has the function of carrying out radius bends on the oven bands of models 6, 10 and 20 of the GN 1/1 and GN 2/1 product families which differ from each other in terms of depth and fold center distance.
Versioning to switch from one model to another is carried out automatically by the machine once the model to be worked on has been set on the touch panel.
electro-welded steel frame
Hydraulic and pneumatic machine operation with PLC control
hydraulic power unit
pneumatic system
electrical system with touch panel
mobile work units for automatic versioning depending on the model to be worked on
view the various work phases as they occur;
view anomalies found during the bending cycle;
view any anomalies (current alarms and alarm history);
display the status of the PLC inputs and outputs;
set some functional parameters;
select the model to be processed to proceed with the automatic versioning of the machine
manually control the various moving parts of the machine (enabling under password)
